STHT1

Thin Mini ITX

AMD FP11 Strix Halo processor Up to 2*USB3.2 Gen2+2*USB3.2 Gen1+7*USB 2.0 or 3*USB3.2 Gen1+7*USB 2.0+1*Type-C HDMI+DP/VGA/COM+LVDS+eDP Multi-display TPM for option For all-in-one or box

技術規格
産品介紹
技術下載

- 商品名稱: STHT1
- 産品定位: Thin Mini ITX
- 版型: Thin Mini ITX
- CPU: AMD
- 列表數據: AMD FP11 Strix Halo processor Up to 2*USB3.2 Gen2+2*USB3.2 Gen1+7*USB 2.0 or 3*USB3.2 Gen1+7*USB 2.0+1*Type-C HDMI+DP/VGA/COM+LVDS+eDP Multi-display TPM for option For all-in-one or box
AMD FP11 Strix Halo processor Up to 2*USB3.2 Gen2+2*USB3.2 Gen1+7*USB 2.0 or 3*USB3.2 Gen1+7*USB 2.0+1*Type-C HDMI+DP/VGA/COM+LVDS+eDP Multi-display TPM for option For all-in-one or box

System

CPU
AMD FP11, Strix Halo

Chipset
NA

Memory
LPDDR5X 315ball, up to 128G

Storag

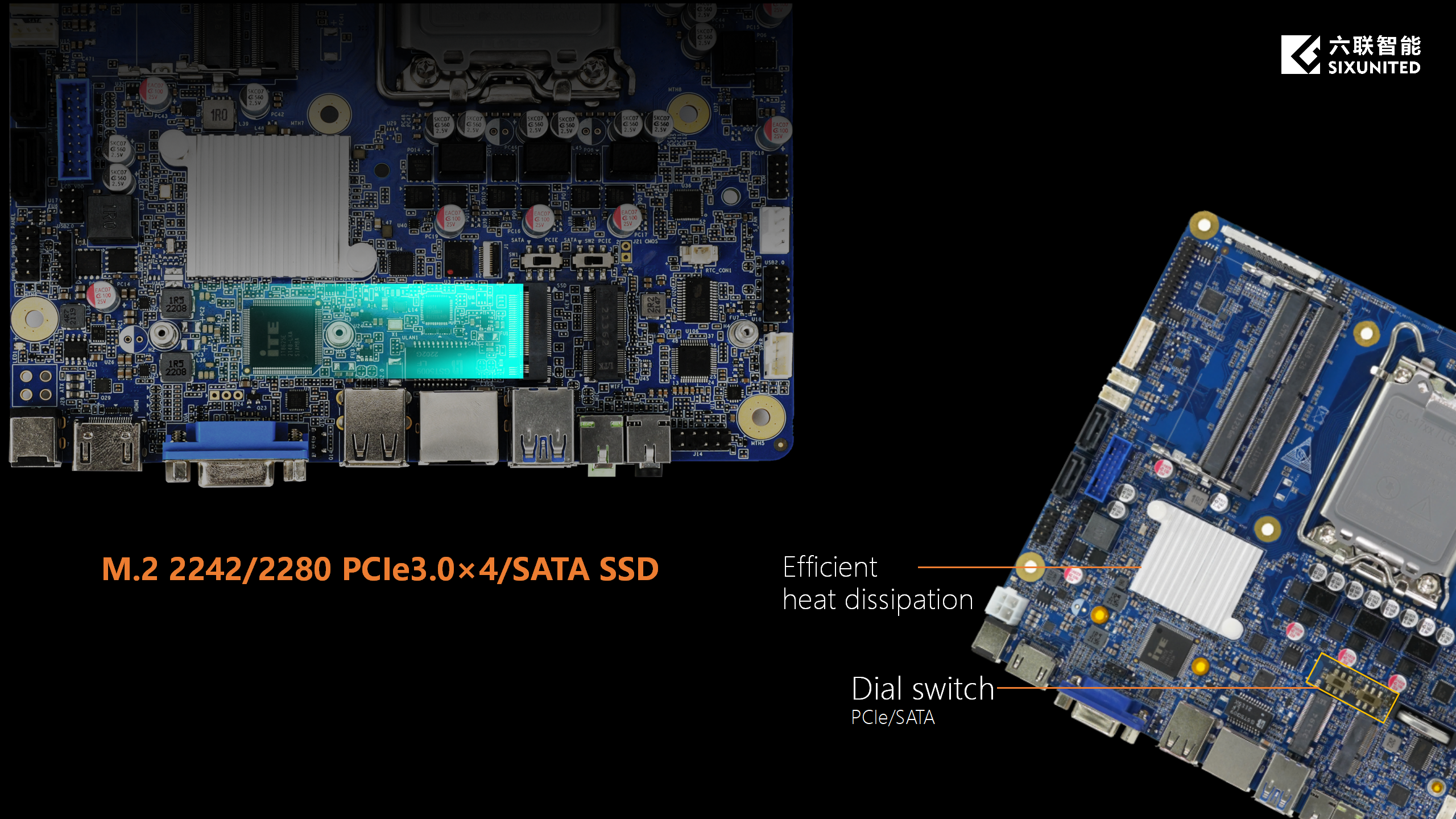

2*M.2 2280 PCIe4.0×4

WiFi
M.2 2230 PCIe+USB

OS
Windows 10/ Windows 11/ Linux

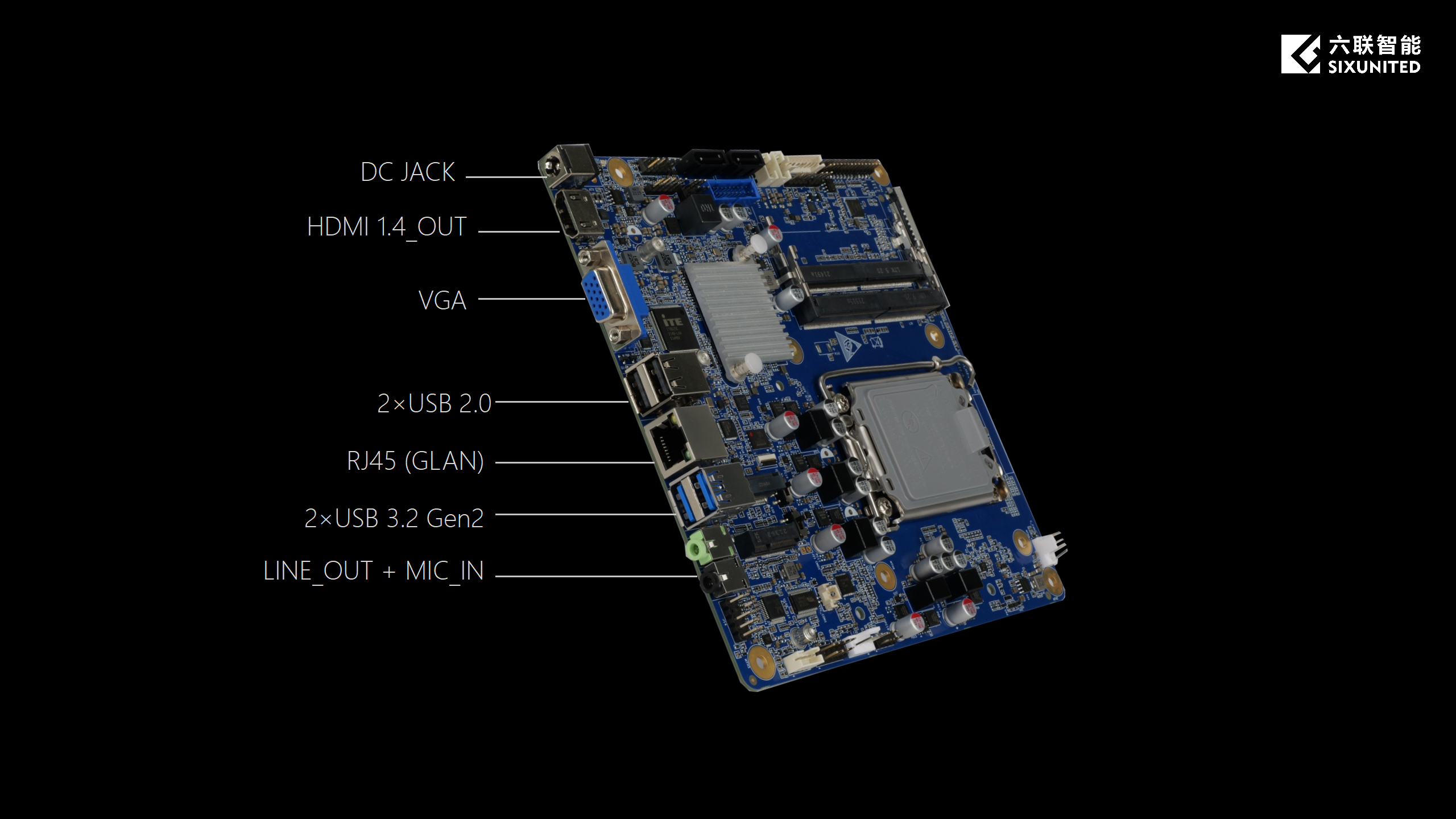

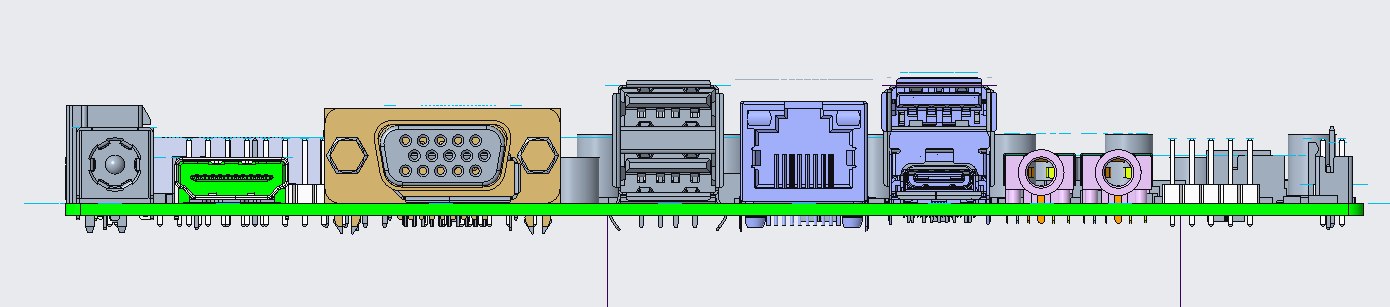

Rear I/O

Audio
1*Earphone + 1*Mic-in

USB
2*USB3.2 Gen2 + 2*USB2.0
or 1*USB3.2 Gen2 Type C（data+15W PD ）
+1*USB3.2 Gen1 Type A + 2*USB2.0

HDMI
1*HDMI 2.1_OUT+ 1*HDMI 2.1_OUT (Side I/O)

VGA
1*DP/VGA/COM, option

LAN
1*RJ45 GLAN

DC-IN
1*19V DC_IN

Internal I/O

USB
4*Header(2*USB3.2 Gen1 + 5*USB2.0)

F_Panel
1

Audio
1*4Pin Speaker
1*F_Audio

FAN
1*4Pin CPU_FAN
1*4Pin SYS_FAN

LVDS/ eDP
1

COM
1 (Connected to SIO)

SATA
/

PWR
2×2 ATX Power（19V)

Mechanical

Power
19V DC IN

Dimension
170mm*170mm
