PCUT1C

Thin Mini ITX

AMD FP5 Picasso-U processor Support USB3.2 Gen2,10Gbps Up to 2*USB3.2 Gen2+2*USB3.2 Gen1 + 7*USB2.0 HDMI+DP/VGA/COM+LVDS+eDP Multi-display Dual-RJ45 optional For all-in-one or box

技術規格
産品介紹
技術下載

- 商品名稱: PCUT1C
- 産品定位: Thin Mini ITX
- 版型: Thin Mini ITX
- CPU: AMD
- AMD: 移動平台Picasso/Dali
- 列表數據: AMD FP5 Picasso-U processor Support USB3.2 Gen2,10Gbps Up to 2*USB3.2 Gen2+2*USB3.2 Gen1 + 7*USB2.0 HDMI+DP/VGA/COM+LVDS+eDP Multi-display Dual-RJ45 optional For all-in-one or box
AMD FP5 Picasso-U processor Support USB3.2 Gen2,10Gbps Up to 2*USB3.2 Gen2+2*USB3.2 Gen1 + 7*USB2.0 HDMI+DP/VGA/COM+LVDS+eDP Multi-display Dual-RJ45 optional For all-in-one or box

System

CPU
AMD FP5 Picasso-U

Chipset
NA

Memory
2*DDR4 SO-DIMM, up to 64G

Storag
1*M.2 2242/2280 PCIe3.0X4/SATA

WiFi
M.2 2230 PCIe/USB+USB

OS
Windows 10/ Windows 11/ Linux

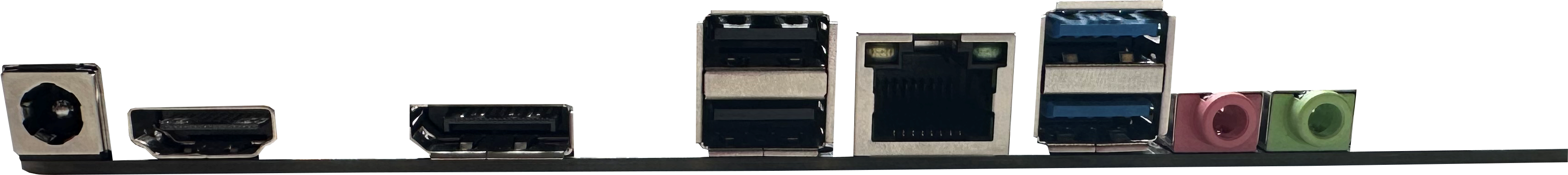

Rear I/O

Audio
1*Earphone + 1*Mic-in

USB
2*USB3.2 Gen2 + 2*USB2.0

HDMI
1*HDMI 1.4_OUT+ 1*HDMI 1.4_OUT (Side I/O)

VGA
1*DP/VGA/COM, option

LAN
1*RJ45 GLAN or 2*RJ45 GLAN (When without 2*USB2.0)

DC-IN
1*19V DC_IN

Internal I/O

USB
4*Header(2*USB3.2 Gen1 + 5*USB2.0)

F_Panel
1

Audio
1*4Pin Speaker
1*F_Audio

FAN
1*4Pin CPU_FAN
1*4Pin SYS_FAN

LVDS/ eDP
1

COM
1

SATA
2*SATA + 2*SATA PWR

PWR
2×2 ATX Power（19V)

Mechanical

Power
19V DC IN

Dimension
170mm*170mm
